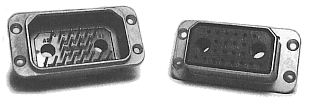

DPA CANNON

D P A - C A N N O N



ORDERING GUIDE:   D P A  M A  -  3 2 -  3 3 S - F 0

BASIC PART NUMBER
  DPA - CANNON RACK & PANEL
CLASS
  BLANK - STANDARD, SOLDER CONTACTS
F - FLOAT MOUNTS, SOLDER CONTACTS
MA - WITH CRIMP STYLE CONTACTS
INSERT ARRANGEMENT
  SEE CHART
SHELL TYPE
  33 - PLUG
34 - RECEPTACLE
CONTACT TYPE
  P - PIN
S - SOCKET
MODIFIER
  BLANK - WITH CONTACTS
FO - LESS CONTACTS

INSERT CHART

INSERT
ARRANGEMENT
TOTAL
CONTACTS
20 GA 14 GA 12 GA 8 GA 4 GA COAX
  2*   2           2
  5*   5     4       1
  6*   6   2     2   2
  21C3**   21   18           3
  21W3***   21   18           3
  24C2**   24   22           2
  24W2***   24   22           2
  29C1   29   28           1
  29W1***   29   28           1
  32   32   32
  *   ONLY AVAILABLE IN SOLDER
  **  COAX CONTACTS ARE FIXED FOR SOLDER
  *** COAX CONTACTS ARE NOT SUPPLIED. MUST BE ORDERED ACCORDING TO COAX
       CABLE GROUP

ACCESSORIES

CONTACTS-CRIMP DESCRIPTION
  MS39029/4-110   20  GA PIN
  MS39029/5-115   20 GA SKT
TOOLS DESCRIPTION
  M81969/14-02   20 GA INS/RMV
  M22520/1-01   CRIMPER
  M22520/1-02   TURRET
BACKSHELLS DESCRIPTION
  DPA-20746   STRAIGHT
  DPA-20746-1   90 DEGREE
DUST CAPS DESCRIPTION
  DPA-59   33-PLUG
  DPA-60   34-RECEPT
